70107400 | LAPP

Grommet housing, size HB16, aluminum alloy, PG21/PG29, angled, cross bow locking, IP65, 70107400

Order No.: 30P381
EAN: 4044773573251
MPN:
70107400
EPIC H-B 16 TSBH 29 ZW
Series: EPIC H-B 16
LAPP

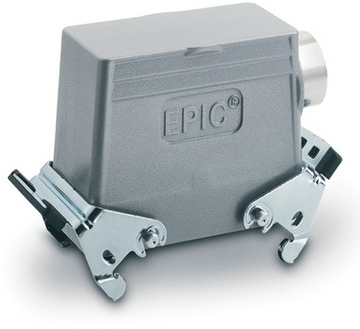

70107400 LAPP Housings for HDC Connectors Image 1
70107400 LAPP Housings for HDC Connectors Image 2
Image may differ
Unit Price (€ / pc.)
30.5354 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
30.54 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5354 €
5 pcs.
27.9174 €
10 pcs.
26.1681 €
25 pcs.
24.4307 €
*incl. VAT plus shipping costs
**Subject to prior sale

Sleeve housing, 70107400, LAPP

The 70107400 housing for rectangular connectors has 2 double levers, a side cable entry and is equipped with a neck.

Features

  • Supplementary automation components
  • Mechanical and plant engineering
  • Mechanical resistance
  • Robust
  • Waterproof

Applications

  • Light & sound technology
  • Plastics industry
Technical specifications
Version grommet housing
Shell size HB16
Shell Material aluminum alloy
Cable Outlet PG21/PG29, angled
Degree of protection (IP) IP65
Type of locking cross bow locking
Logistics
Country of origin DE
Customs tariff number 85369010
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
