70157600 | LAPP
Grommet housing, size HB24, aluminum alloy, PG21/PG29, angled, cross bow locking, IP65, 70157600
Nicht geeignet für Neudesigns, LTB: 31.12.2025
Unit Price (€ / pc.)
31.6302 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
31.63 € *
Price list
Quantity
Price per unit*
1 pcs.
31.6302 €
5 pcs.
28.4767 €
10 pcs.
26.0967 €
50 pcs.
24.5140 €
100 pcs.
22.9313 €
*incl. VAT plus shipping costs
**Subject to prior sale

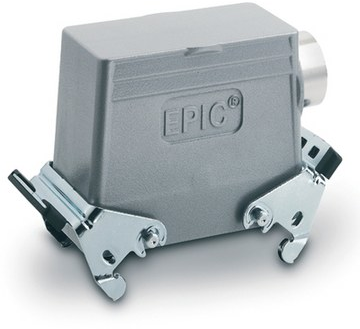

Sleeve housing, 70157600, LAPP
The 70157600 metal housing for rectangular connectors consists of 2 double levers and a side cable entry and can be used for lighting and sound systems.
Features
- Supplementary automation components
- Mechanical and plant engineering
- Mechanical resistance
- Robust
- Waterproof
Applications
- Light & sound technology
- Plastics industry

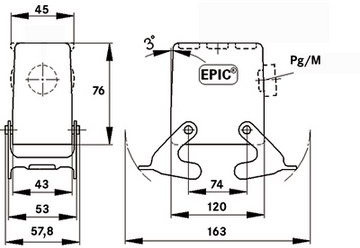

Technical specifications
| Version | Tüllengehäuse | |
| Shell size | HB24 | |
| Shell Material | Aluminiumlegierung | |
| Cable Outlet | PG21/PG29, abgewinkelt | |
| Degree of protection (IP) | IP65 | |
| Type of locking | Querbügelverriegelung |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85369010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
