0099007 | LAPP
PTFE-switching strand, ÖLFLEX HEAT 260 SC, AWG 22, purple, outer Ø 1.3 mm, 0099007
Order No.: 33P1196
EAN: 4044774693026
MPN:
0099007
ÖLFLEX HEAT 260 SC 22/7AWG VT
Series: ÖLFLEX HEAT 260 SC
Unit Price (€ / mtr.)
1.6898 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
1.69 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6898 €
10 mtr.
1.4756 €
50 mtr.
1.3566 €
100 mtr.
1.2495 €
500 mtr.
1.1781 €
*incl. VAT plus shipping costs
**Subject to prior sale

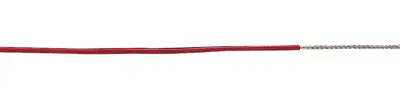

Stranded wire, 0099007, LAPP
Features
- High dielectric strength and high abrasion resistance
- Low water absorption
- Resistant to microbes
- Adhesion free insulation materials
Applications
- For use in environments with very high operating temperatures, heavy usage of chemical agents or confined spaces
- High-frequency engineering
- Control cabinets with high heat generation
- Measuring instruments
- Furnaces and brickworks
- Heating equipment and kitchen appliances
- Installations in the chemical industry
Technical specifications
| Aderisolationsmaterial | PTFE | |
| Außendurchmesser | 1.3 mm | |
| AWG-Leiterquerschnitt | AWG 22 | |
| Farbe | violett | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, versilbert | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Norm | UL | |
| Prüfspannung | 3.4 kV | |
| Temperaturbereich (unbewegt) | -190 bis 260 °C | |
| Biegeradius bewegt | 13 mm | |
| Biegeradius unbewegt | 5.2 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
