1023776 | LAPP

Copolymer-photovoltaic cable, halogen free, H1Z2Z2-K, 10 mm², red, outer Ø 7.1 mm, 1023776

Order No.: 91F8505
EAN: 4056155103611
MPN:
1023776
H1Z2Z2-K 1X10 RD
Series: H1Z2Z2-K
LAPP
1023776 LAPP Insulated stranded wires

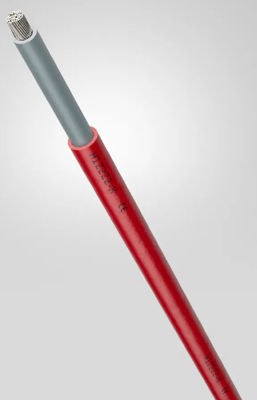

Image may differ
Unit Price (€ / mtr.)
2.7489 € *
Available: 136 mtr.
Leadtime: On Request **
Total Price:
2.75 € *
Price list
Quantity
Price per unit*
1 mtr.
2.7489 €
10 mtr.
2.5823 €
50 mtr.
2.4276 €
100 mtr.
2.2729 €
500 mtr.
2.1063 €
*incl. VAT plus shipping costs
**Subject to prior sale

Photovoltaic cable, 1023776, LAPP

The photovoltaic cable type -K is resistant to abrasion, notch, weather, and UV radiation. This cross-linked solar photovoltaic cable is permitted to be freely suspended, and is suited to permanent outdoor use to connect grounded and ungrounded photovoltaic systems.

Features

  • Impact-/Crushing-Resistance
  • Flame retardant
  • Halogen-free
  • Low corrosiveness of combustion gases
  • Robust against mechanical impacts

Applications

  • Photovoltaic systems with DC system voltage up to 1800 V to ground
  • Permanent water contact and submersion down to 1 metre in water depth
  • For use inside and on double-insulated appliances and systems (protection class II)
  • For short-circuit protected, or earth fault proof wiring
  • Installation inside ducts, conduits, channels, raceways, plaster as well as devices, appliances, etc.
Technical specifications
Core insulation material copolymer
Outer diameter 7.1 mm
Colour red
Halogen free Yes
Conductor category CL.5 = fine stranded
Cable material copper, tin-plated
Cable cross-section 10 mm²
Rated voltage 1 kV
Rated voltage U0 1000 V
Standard number according to DIN VDE 0295
Test voltage 6.5 kV
Temperature range (active) -25 °C to 90 °C
Logistics
Country of origin DE
Customs tariff number 85444999
Original Packaging Ring with 100 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
