1249532 | LAPP

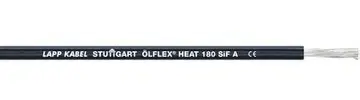

Silicone-switching strand, halogen free, ÖLFLEX HEAT 180 SiF A, 35 mm², black, outer Ø 10.95 mm, 1249532
Order No.: 31P8105
EAN: 4064728768556
MPN:
1249532
ÖLFLEX HEAT 180 SiF A 1x35 BK
Series: ÖLFLEX HEAT 180 SiF A
Unit Price (€ / mtr.)
24.4188 € *
Available: 0 mtr.
Leadtime: On Request **
Stranded wire, 1249532/100, LAPP KABEL
Silicone single core cable with extended temperature range.
Features
- Fine-wire, tinned-copper conductor
- Low smoke density
- Low toxicity
- Flame retardant
- No corrosive gases
Applications
- Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while
- Control cabinet manufacturing
- Appliances and apparatus engineering
- Electric motor industry
- Thermal and heating elements
- Air-conditioning technology
- Furnace construction
- Polymer processing
- Generator and transformer manufacturing
Technical specifications
| Core insulation material | silicone | |
| Outer diameter | 10.95 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 35 mm² | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 1 kV | |
| Standard number | UL | |
| Test voltage | 3 kV | |
| Temperature range (active) | -50 °C to 180 °C | |
| Temperature range (unmoved) | -50 °C to 180 °C | |
| Bending radius unmoved | 65.7 mm |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
