1249591/100 | LAPP

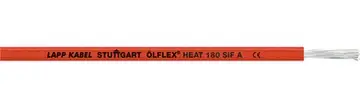

Silicone-switching strand, halogen free, ÖLFLEX HEAT 180 SiF A, 25 mm², red, outer Ø 9.85 mm, 1249591/100
Order No.: 31P8103
EAN: 4044777173884
MPN:
1249591/100
ÖLFLEX HEAT 180 SiF A 1x25 RD
Series: ÖLFLEX HEAT 180 SiF A
Unit Price (€ / mtr.)
13.9468 € *
Available: 0 mtr.
Leadtime: On Request **
Stranded wire, 1249591/100, LAPP KABEL
Silicone single core cable with extended temperature range.
Features
- Fine-wire, tinned-copper conductor
- Low smoke density
- Low toxicity
- Flame retardant
- No corrosive gases
Applications
- Areas with high ambient temperatures where conventional core insulation materials will embrittle after a short while
- Control cabinet manufacturing
- Appliances and apparatus engineering
- Electric motor industry
- Thermal and heating elements
- Air-conditioning technology
- Furnace construction
- Polymer processing
- Generator and transformer manufacturing
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Außendurchmesser | 9.85 mm | |
| Farbe | rot | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 25 mm² | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1 kV | |
| Norm | UL | |
| Prüfspannung | 3 kV | |
| Temperaturbereich (unbewegt) | -50 °C bis 180 °C | |
| Biegeradius unbewegt | 59.1 mm |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
