15331086 | LAPP
Polymer compound-train cable, halogen free, ÖLFLEX TRAIN 331 600V, 10 mm², brown, outer Ø 5.6 mm, 15331086
Order No.: 33P2379
EAN: 4064727162232
MPN:
15331086
ÖLFLEX TRAIN 331 600V 1X10 BN
Series: ÖLFLEX TRAIN 331 600V
Unit Price (€ / mtr.)
3.6176 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
3.62 € *
Price list
Quantity
Price per unit*
100 mtr.
3.6176 €
500 mtr.
3.4153 €
*incl. VAT plus shipping costs
**Subject to prior sale

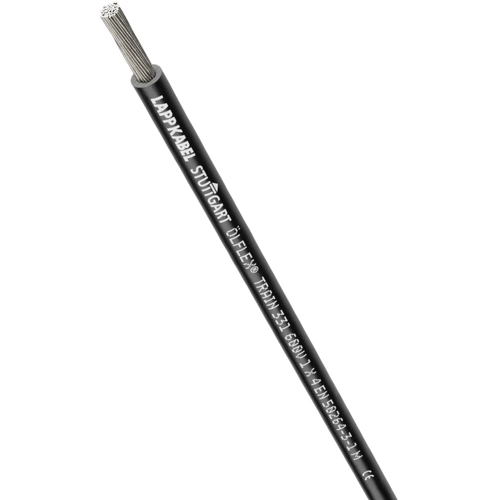

Single-core cable, 15331086, LAPP
The 15331086 is a single-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Cold resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | polymer compound | |
| Outer diameter | 5.6 mm | |
| Colour | brown | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 10 mm² | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Test voltage | 3.5 kV | |
| Temperature range (active) | -35°C to 90 °C | |
| Temperature range (unmoved) | -40°C to 120 °C |
Download
Logistics
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
