15382010 | LAPP
Silicone-train cable, halogen free, ÖLFLEX TRAIN HT 150 F 1,8kV, 95 mm², black, outer Ø 18.5 mm, 15382010
Order No.: 33P2581
EAN: 4044777818921
MPN:
15382010
ÖLFLEX TRAIN HT 150 F 1,8kV 1x95
Series: ÖLFLEX TRAIN HT 150 F 1,8kV
Unit Price (€ / mtr.)
58.8574 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

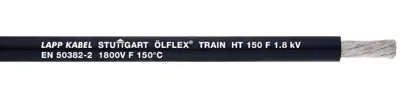

Single-core cable, 15382010, LAPP
The 15382010 is a single core silicone rubber insulated high temperature cable for railway rolling stock, having special fire performance. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Aderisolationsmaterial | Silikon | |
| Außendurchmesser | 18.5 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 95 mm² | |
| Nennspannung | 3 kV | |
| Nennspannung U0 | 1800 V | |
| Prüfspannung | 6.5 kV | |
| Temperaturbereich (unbewegt) | -40°C bis 150 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85446010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
