3016699 | LAPP

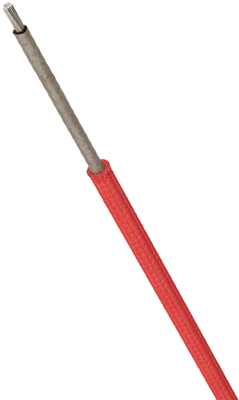

Glass silk-switching strand, halogen free, ÖLFLEX HEAT 1565 SC, 25 mm², red, outer Ø 9.2 mm, 3016699
Order No.: 33P906
EAN: 4044774694634
MPN:
3016699
ÖLFLEX HEAT 1565 SC 1X25
Series: ÖLFLEX HEAT 1565 SC
Unit Price (€ / mtr.)
156.5088 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
15,650.88 € *
*incl. VAT plus shipping costs
**Subject to prior sale
100 mtr.
156.5088 €
Glass silk-switching strand, 3016699, LAPP
Features
- Flame retardant
- Only suitable for use in dry conditions
Applications
- Guarantees the circuit even in areas with extremely high ambient temperatures
- Blast furnaces and coking plants
- Refineries
- Glassworks
- Aluminium and steelworks
Technical specifications
| Aderisolationsmaterial | Glasseide | |
| Außendurchmesser | 9.2 mm | |
| Farbe | rot | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, vernickelt | |
| Leiterquerschnitt | 25 mm² | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2.2 kV | |
| Temperaturbereich (unbewegt) | -190 bis 400 °C | |
| Biegeradius bewegt | 138 mm | |
| Biegeradius unbewegt | 46 mm |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
