4150900 | LAPP

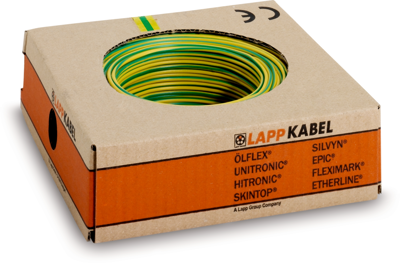

PVC-Stranded wire, high flexible, ÖLFLEX WIRE MS 2.2, 16 mm², AWG 6, green/yellow, outer Ø 9 mm, 4150900
Order No.: 30P4027
EAN: 4044774727141
MPN:
4150900
ÖLFLEX WIRE MS 2.2 1X16 GNYE
Series: ÖLFLEX WIRE MS 2.2
Unit Price (€ / mtr.)
8.2467 € *
Available: 0 mtr.
Leadtime: 7 Weeks **
Stranded wire, high flexible, 4150900, LAPP KABEL
The 4150900 is a connection and control cable, PVC core cable, field wiring and has an increased maximum conductor temperature.
Features
- Flame retardant
- Oil-resistant
Applications
- Factory wiring
- Field wiring
- Frequency converter power supply
- Internal wiring of devices and in control cabinets
- Protected wiring in and on lights
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 9 mm | |
| AWG cross-section | AWG 6 | |
| Colour | green/yellow | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 16 mm² | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Rated voltage UL/CSA | 1 kV | |
| Standard number | HAR, UL, CSA | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | -40 °C to 90 °C | |
| Temperature range (unmoved) | -40 °C to 105 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
| Original Packaging | Carton with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
