4150900 | LAPP

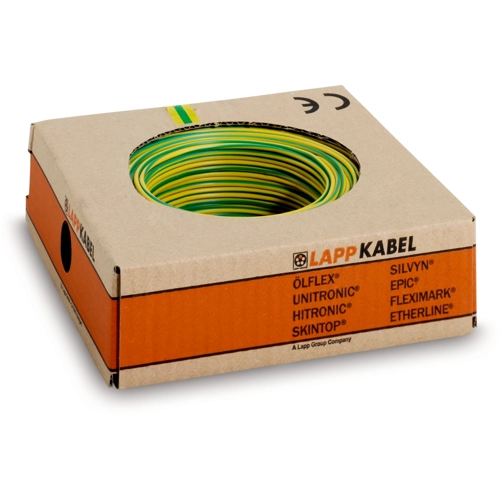

PVC-stranded wire, high flexible, ÖLFLEX WIRE MS 2.2, 16 mm², AWG 6, green/yellow, outer Ø 9 mm, 4150900
Order No.: 30P4027
EAN: 4044774727141
MPN:
4150900
ÖLFLEX WIRE MS 2.2 1X16 GNYE
Series: ÖLFLEX WIRE MS 2.2
Unit Price (€ / mtr.)
8.3538 € *
Available: 0 mtr.
Leadtime: 7 Weeks **
Stranded wire, high flexible, 4150900, LAPP KABEL
The 4150900 is a connection and control cable, PVC core cable, field wiring and has an increased maximum conductor temperature.
Features
- Flame retardant
- Oil-resistant
Applications
- Factory wiring
- Field wiring
- Frequency converter power supply
- Internal wiring of devices and in control cabinets
- Protected wiring in and on lights
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 9 mm | |
| AWG-Leiterquerschnitt | AWG 6 | |
| Farbe | grün/gelb | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 16 mm² | |
| Nennspannung | 750 V | |
| Nennspannung U0 | 450 V | |
| Nennspannung UL/CSA | 1 kV | |
| Norm | HAR, UL, CSA | |
| Prüfspannung | 2.5 kV | |
| Temperaturbereich (bewegt) | -40 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 105 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444995 |
| Originalverpackung | Karton mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
