4512463S | LAPP

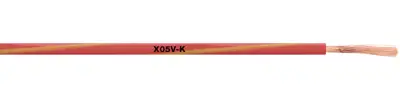

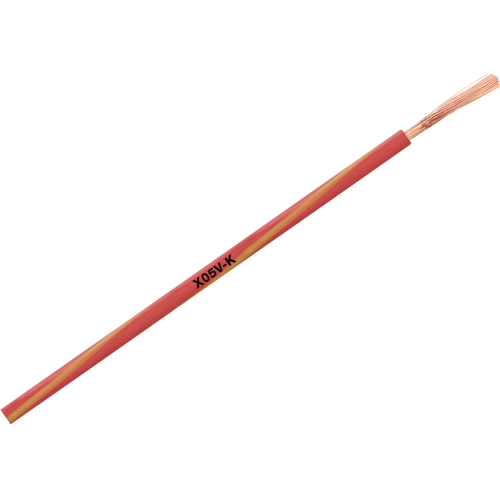

PVC-switching strand, X05V-K, 1.0 mm², white/red, outer Ø 2.8 mm, 4512463S
Unit Price (€ / mtr.)
0.6783 € *
Available: 0 mtr.
Leadtime: On Request **
Single wire, 4512463S, LAPP
The 4512463S is a wiring cable with thermoplastic PVC-insulation for protected, stationary installation inside devices as well as inside or on lamps. Suitable for installation inside of closed conduits and cable ducting systems and on or under plaster, but only as part of signal or control circuits.
Features
- Twin-colour spiralized PVC
- Flame-retardant
Applications
- Internal wiring of devices
- Protected installation in and on lighting equipments
- Signal systems in and on plaster in tubes
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 2.8 mm | |
| Colour | weiß/rot | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 1,0 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Standard number | EN | |
| Test voltage | 2 kV | |
| Temperature range (active) | -5 °C bis 70 °C | |
| Temperature range (unmoved) | -40 °C bis 70 °C | |
| Bending radius unmoved | 11.2 mm |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
