4520064/100 | LAPP

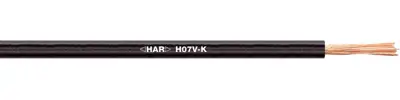

PVC-Stranded wire, high flexible, H07V-K, 6.0 mm², gray, outer Ø 5.3 mm, 4520064/100
Unit Price (€ / mtr.)
2.5823 € *
Available: 0 mtr.
Leadtime: 9 Weeks **
Total Price:
2.58 € *
Price list
Quantity
Price per unit*
1 mtr.
2.5823 €
10 mtr.
2.3205 €
100 mtr.
2.0587 €
500 mtr.
1.8088 €
1000 mtr.
1.5827 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, high flexible, 4520064/100, LAPP KABEL
Connection and control cable, PVC, 450/750 V, wiring machines and control cabinets, Class 5/Fine wire, fixed, Ring.
Features
- Flame retardant
- Fine stranded copper conductor made of bare copper wires
- Core insulation on special PVC basis
Applications
- Installation in pipes on, in and under plaster as well as in closed installation ducts
- For direct laying on flatbeds, gutters and troughs only as equipotential bonding conductor
Technical specifications
| Core insulation material | PVC | |
| Outer diameter | 5.3 mm | |
| Colour | gray | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 6.0 mm² | |
| Rated voltage | 750 V | |
| Rated voltage U0 | 450 V | |
| Standard number | HAR | |
| Test voltage | 2.5 kV | |
| Temperature range (active) | 5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
