4530107 | LAPP

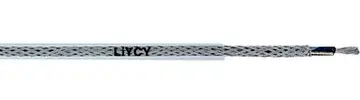

PVC-switching strand, LiYCY, 2.5 mm², transparent, outer Ø 6 mm, 4530107
Unit Price (€ / mtr.)
3.5462 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
3.55 € *
Price list
Quantity
Price per unit*
100 mtr.
3.5462 €
500 mtr.
3.2368 €
*incl. VAT plus shipping costs
**Subject to prior sale
Stranded wire, 4530107, LAPP KABEL
LiYCY, shielded PVC-core cable according to VDE 0812 for use in control cabinets and EMC-sensitive environments.
Features
- Stranded wire made of tinned copper wires
- Core insulation based on PVC
- Flame retardant
Applications
- Wiring of measuring instruments, control cabinets, electrical components as well as transmitting and receiving equipment
- In EMC critical environments
Technical specifications
| Aderisolationsmaterial | PVC | |
| Außendurchmesser | 6 mm | |
| Farbe | transparent | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 2,5 mm² | |
| Nennspannung | 320 V | |
| Norm | VDE 0812 | |
| Prüfspannung | 800 V | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -30 °C bis 80 °C |
Download
Logistics
| Ursprungsland | DE |
| Zolltarifnummer | 85444993 |
| Originalverpackung | Ring mit 100 Meter |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
