52003500 | LAPP

Earth potential equalization locknut, PG9, W 18 mm, H 2.8 mm, outer Ø 20 mm, brass, nickel-plated, 52003500

Order No.: 32P2135
EAN: 4044773438499
MPN:
52003500
SKINDICHT SM PG 9 Gegenmutter
Series: SKINDICHT SM
LAPP

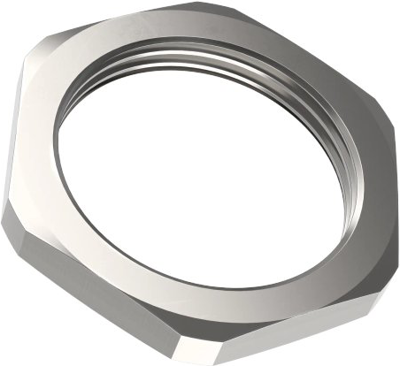

52003500 LAPP Nuts, Washers, Rings Image 1

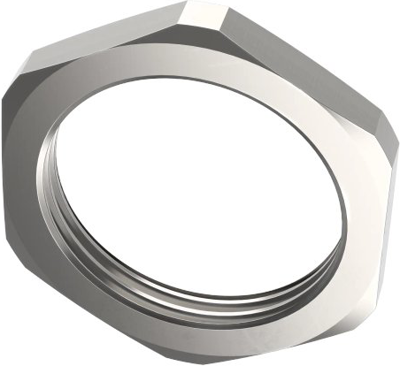

52003500 LAPP Nuts, Washers, Rings Image 2

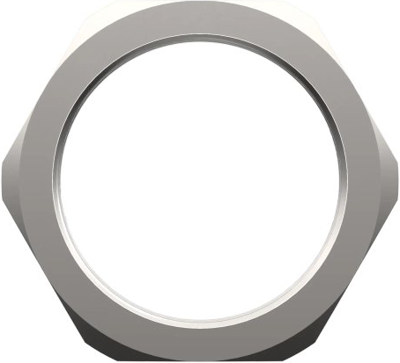

52003500 LAPP Nuts, Washers, Rings Image 3
Image may differ
Unit Price (€ / pc.)
0.4165 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
0.42 € *
Price list
Quantity
Price per unit*
1 pcs.
0.4165 €
10 pcs.
0.3808 €
25 pcs.
0.3570 €
50 pcs.
0.3332 €
100 pcs.
0.3213 €
*incl. VAT plus shipping costs
**Subject to prior sale

Lock nut, 52003500, LAPP

The 52003500 is a nickel-plated brass locknut with PG-thread. It is required wherever a gland must be secured or thin housing walls allow only through-holes.

Features

  • Withstands high chemical and mechanical loads
  • For locking a cable gland on the inside of the application (e.g. housing)
Technical specifications
Version counter nut
Outer diameter 20 mm
Colour silver gray
Spindle drive type external hexagon
Thread size PG9
Height 2.8 mm
Material brass, nickel-plated
spanner size 18 mm
Logistics
Country of origin DE
Customs tariff number 74153300
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
