0027985 | LAPP
PUR servo line ÖLFLEX SERVO FD 796 CP 4 G 1.5 mm², AWG 16, shielded, orange, 0027985
Order No.: 32P9845
EAN: 4064727379319
MPN:
0027985
ÖLFLEX SERVO FD 796 CP 4G1,5+(3x1)+(2x0
Series: ÖLFLEX SERVO FD 796 CP
Unit Price (€ / mtr.)
20.2538 € *
Available: 0 mtr.
Leadtime: On Request **

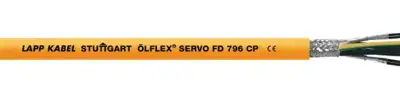

Screened servo cable, 0027985, LAPP
Screened servo cable with PUR outer sheath for highly dynamic power chain application in harsh conditions with UL/CSA AWM and VDE certification. Allows much faster speed and accelerations, which increases the economic efficiency of the machines. Low capacitance design enables longer cable connection between frequency converter and motor. Resistant to contact with many mineral oil-based lubricants, diluted acids, aqueous alkaline solutions and other chemical media.
Features
- Halogen-free
- Mechanical resistance
- Oil-resistant
- Power chain
- Interference signals
- UV-resistant
Applications
- Connecting cable between servo controller and motor
- In power chains or moving machine parts
- For use in assembling and pick-and-place machinery
- Particularly in wet areas of machine tools and transfer lines
- Assembly lines, production lines, in all kinds of machines
- For indoor and outdoor use
Technical specifications
| Core insulation material | polypropylene | |
| Core colour sequence | black | |
| Number of cores | 4 | |
| Version | servo line | |
| Outer diameter | 12.9 mm | |
| AWG cross-section | AWG 16 | |
| Colour | orange | |
| Halogen free | Yes | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 1.5 mm² | |
| Material | PUR | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 1000 V | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C to 90 °C | |
| Temperature range (unmoved) | -50 °C to 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
