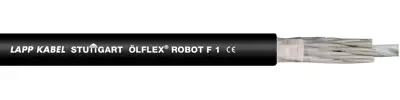

PUR robot cable ÖLFLEX ROBOT F1 18 x 0.25 mm², AWG 24, unshielded, anthracite, 0029592
Unit Price (€ / mtr.)
32.3918 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Robot cable, 0029592, LAPP
The 0029592 is especially designed to withstand torsion and bending stress in once, e.g. for connecting handling tools to assemblingor welding robotics, to manipulators, for connecting to rotating or tilting tables. The cable increased oil-resistant at room temperature generally resistant against acids and caustics solutions. The outer sheath of Polyurethane is resistant against high mechanical stress, particularly to abrasion cuts, microbe proof and hydrolysis resistant.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Torsion-resistant
- UV-resistant
- Flame-retardant
Technical specifications
| Core insulation material | TPE | |
| Core colour sequence | DIN 47100 | |
| Number of cores | 18 | |
| Version | Roboterleitung | |
| Outer diameter | 10.6 mm | |
| AWG cross-section | AWG 24 | |
| Colour | anthrazit | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,25 mm² | |
| Material | PUR | |
| Rated voltage | 48 V | |
| Rated voltage UL/CSA | 600 V | |
| Test voltage | 1.5 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -40 °C bis 80 °C | |
| Temperature range (unmoved) | -50 °C bis 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
