0029627 | LAPP

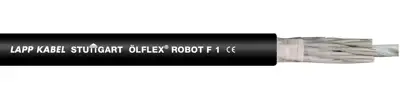

PUR Robot cable ÖLFLEX ROBOT F1 7 G 1.5 mm², AWG 16, unshielded, anthracite, 0029627
Unit Price (€ / mtr.)
14.994 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Robot cable, 0029627, LAPP
The 0029627 is especially designed to withstand torsion and bending stress in once, e.g. for connecting handling tools to assemblingor welding robotics, to manipulators, for connecting to rotating or tilting tables. The cable increased oil-resistant at room temperature generally resistant against acids and caustics solutions. The outer sheath of Polyurethane is resistant against high mechanical stress, particularly to abrasion cuts, microbe proof and hydrolysis resistant.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Torsion-resistant
- UV-resistant
- Flame-retardant
Technical specifications
| Aderisolationsmaterial | TPE | |
| Adernfarbe | DIN 47100 | |
| Anzahl der Adern | 7 | |
| Ausführung | Roboterleitung | |
| Außendurchmesser | 10.5 mm | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | anthrazit | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | PUR | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Nennspannung UL/CSA | 600 V | |
| Prüfspannung | 2 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -40 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -50 °C bis 80 °C |
Download
Logistics
| Ursprungsland | FR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
