0039034 | LAPP

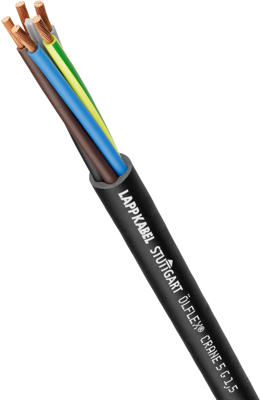

Rubber conveyor equipment cable ÖLFLEX CRANE 2 x 2.5 mm², unshielded, black, 0039034
Unit Price (€ / mtr.)
4.5101 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 0039034, LAPP
Features
- Flame-retardant
- Not suitable for use on guide pulleys or drums under tensile load
- Refer to the article table for the tensile strength of the cable
- The cable should be installed in a way that the supporting element can absorb the tensile forces
- The mobility of the cores must not be affected by the clamps
Applications
- Machinery and equipment that are permanently exposed to the weather; conveying and hoisting equipment; construction machinery; shipyard machinery
- Suitable for use in special conditions, such as not more than 2 weeks without interruption of submersion in industrial or sea water
Technical specifications
| Core insulation material | Gummi | |
| Core colour sequence | VDE 0293-308 | |
| Number of cores | 2 | |
| Version | Fördermittelleitung | |
| Outer diameter | 9.7 mm | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 2,5 mm² | |
| Material | Gummi | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 3 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -25 °C bis 80 °C | |
| Temperature range (unmoved) | -40 °C bis 80 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
