00390373 | LAPP

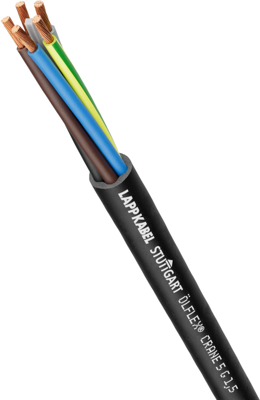

Rubber conveyor equipment cable ÖLFLEX CRANE 5 G 2.5 mm², unshielded, black, 00390373
Unit Price (€ / mtr.)
7.9373 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 00390373, LAPP
Features
- Flame-retardant
- Not suitable for use on guide pulleys or drums under tensile load
- Refer to the article table for the tensile strength of the cable
- The cable should be installed in a way that the supporting element can absorb the tensile forces
- The mobility of the cores must not be affected by the clamps
Applications
- Machinery and equipment that are permanently exposed to the weather; conveying and hoisting equipment; construction machinery; shipyard machinery
- Suitable for use in special conditions, such as not more than 2 weeks without interruption of submersion in industrial or sea water
Technical specifications
| Aderisolationsmaterial | Gummi | |
| Adernfarbe | VDE 0293-308 | |
| Anzahl der Adern | 5 | |
| Ausführung | Fördermittelleitung | |
| Außendurchmesser | 12.4 mm | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Gummi | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
