00440233 | LAPP

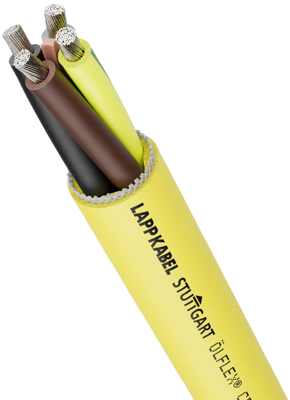

Rubber conveyor equipment cable ÖLFLEX CRANE VS (N)SHTÖU 4 G 16 mm², AWG 6, unshielded, yellow, 00440233
Order No.: 33P4942
EAN: 4044774666013
MPN:
00440233
ÖLFLEX CRANE VS (N)SHTÖU 4G16
Series: ÖLFLEX CRANE VS (N)SHTÖU
Unit Price (€ / mtr.)
50.694 € *
Available: 0 mtr.
Leadtime: On Request **
Conveyor equipment cable, 00440233, LAPP
The 00440233 is a control cable with a central strength member especially for use in hoists, transport and conveyor systems, also for reeling and unreeling, for high mechanical load considering the admissible values. It is among others useable in dry and damp areas and in industrial water. Considering the indicated temperature range an outdoor use is possible. At room temperature it is generally resistant against acids, alkalis and certain oils.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Optimum strain relief
- UV-resistant
- Reinforced outer sheath design
Technical specifications
| Core insulation material | Gummi | |
| Number of cores | 4 | |
| Version | Fördermittelleitung | |
| Outer diameter | 25.5 mm | |
| AWG cross-section | AWG 6 | |
| Colour | gelb | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 16 mm² | |
| Material | Gummi | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 600 V | |
| Test voltage | 3 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C bis 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
