00440243 | LAPP

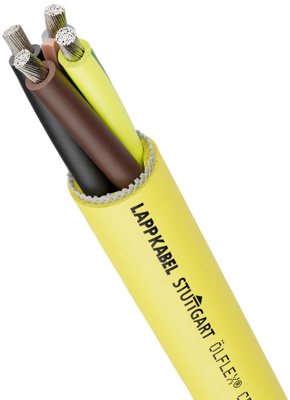

Rubber conveyor equipment cable ÖLFLEX CRANE VS (N)SHTÖU 4 G 25 mm², unshielded, yellow, 00440243
Order No.: 33P4943
EAN: 4044774666037
MPN:
00440243
ÖLFLEX CRANE VS (N)SHTÖU 4G25
Series: ÖLFLEX CRANE VS (N)SHTÖU
Unit Price (€ / mtr.)
64.0577 € *
Available: 0 mtr.
Leadtime: On Request **
Conveyor equipment cable, 00440243, LAPP
The 00440243 is a control cable with a central strength member especially for use in hoists, transport and conveyor systems, also for reeling and unreeling, for high mechanical load considering the admissible values. It is among others useable in dry and damp areas and in industrial water. Considering the indicated temperature range an outdoor use is possible. At room temperature it is generally resistant against acids, alkalis and certain oils.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Optimum strain relief
- UV-resistant
- Reinforced outer sheath design
Technical specifications
| Aderisolationsmaterial | Gummi | |
| Anzahl der Adern | 4 | |
| Ausführung | Fördermittelleitung | |
| Außendurchmesser | 32.6 mm | |
| Farbe | gelb | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 25 mm² | |
| Material | Gummi | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
