00440263 | LAPP

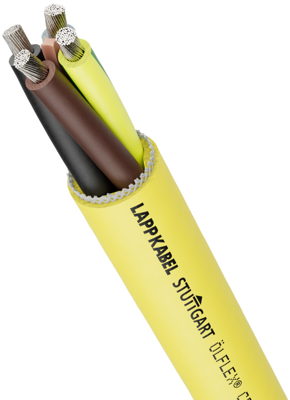

Rubber conveyor equipment cable ÖLFLEX CRANE VS (N)SHTÖU 4 G 50 mm², unshielded, yellow, 00440263
Order No.: 33P4945
EAN: 4044774666075
MPN:
00440263
ÖLFLEX CRANE VS (N)SHTÖU 4G50
Series: ÖLFLEX CRANE VS (N)SHTÖU
Unit Price (€ / mtr.)
130.4716 € *
Available: 0 mtr.
Leadtime: On Request **
Conveyor equipment cable, 00440263, LAPP
The 00440263 is a control cable with a central strength member especially for use in hoists, transport and conveyor systems, also for reeling and unreeling, for high mechanical load considering the admissible values. It is among others useable in dry and damp areas and in industrial water. Considering the indicated temperature range an outdoor use is possible. At room temperature it is generally resistant against acids, alkalis and certain oils.
Features
- Suitable for outdoor use
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Optimum strain relief
- UV-resistant
- Reinforced outer sheath design
Technical specifications
| Aderisolationsmaterial | Gummi | |
| Anzahl der Adern | 4 | |
| Ausführung | Fördermittelleitung | |
| Außendurchmesser | 40.6 mm | |
| Farbe | gelb | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 50 mm² | |
| Material | Gummi | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 3 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 80 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
