1020110 | LAPP

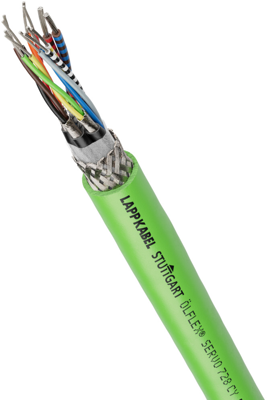

PVC Encoder cable ÖLFLEX SERVO 728 CY 12 x 4 x 2x0.34 mm² + 4x0.5 mm², AWG 21, shielded, green, 1020110
Order No.: 33P1967
EAN: 4044777778911
MPN:
1020110
ÖLFLEX SERVO 728 CY (4x2x0,34+4x0,5)
Series: ÖLFLEX SERVO 728 CY
Unit Price (€ / mtr.)
8.4252 € *
Available: 95 mtr.
Leadtime: 2 Weeks **
Total Price:
8.43 € *
Price list
Quantity
Price per unit*
1 mtr.
8.4252 €
10 mtr.
7.7231 €
50 mtr.
7.2590 €
100 mtr.
6.7949 €
*incl. VAT plus shipping costs
**Subject to prior sale
Encoder cable, 1020110, LAPP
Signal cable for occasional flexible use and fixed installation subject to normal mechanical load conditions. It is also suitable for use in dry, damp or wet areas. If using outdoors, observe the indicated temperature range and use with UV protection.
Features
- Low attenuation ensures a longer transmission distance
- Oil-resistant
- Interference signals
Applications
- Analogue and incremental encoders in servo drives
- For static and occasionally flexible use
- Measurement, control and electrical applications
- Industrial machinery and plant engineering
- Only for outdoor use within the indicated operating temperature range, with UV-protection
Technical specifications
| Core insulation material | polypropylene | |
| Number of cores | 12 | |
| Version | encoder cable | |
| Outer diameter | 8.3 mm | |
| AWG cross-section | AWG 21 | |
| Colour | green | |
| Halogen free | No | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 4 x 2x0.34 mm² + 4x0.5 mm² | |
| Material | PVC | |
| Rated voltage | 30 V | |
| Rated voltage UL/CSA | 300 V | |
| Test voltage | 2 kV | |
| Shielding | shielded | |
| Protective conductor available | No | |
| Temperature range (active) | -5 °C to 70 °C | |
| Temperature range (unmoved) | -40 °C to 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444993 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
