1023386 | LAPP
PUR servo line ÖLFLEX SERVO FD 7OCS 8 G 0.75 mm², AWG 19, shielded, orange, 1023386
Order No.: 33P5116
EAN: 4064727487755
MPN:
1023386
ÖLFLEX SERVO FD 7OCS 4G19AWG+(2x21AWG)+
Series: ÖLFLEX SERVO FD 7OCS
Unit Price (€ / mtr.)
21.539 € *
Available: 0 mtr.
Leadtime: On Request **

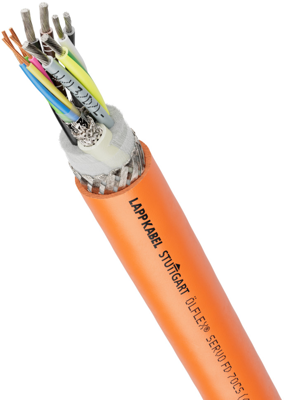

Servo cable, 1023386, LAPP
The 1023386 is a low capacitive hybrid servo cable with PUR outer sheath for highly dynamic power chain application - certified. Suitable for various OEM transmission protocols.
Features
- Suitable for outdoor use
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
Technical specifications
| Core insulation material | Polypropylen | |
| Number of cores | 8 | |
| Version | Servoleitung | |
| Outer diameter | 10.6 mm | |
| AWG cross-section | AWG 19 | |
| Colour | orange | |
| Halogen free | Yes | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 0,75 mm² | |
| Material | PUR | |
| Rated voltage | 300 V | |
| Test voltage | 4 kV | |
| Shielding | geschirmt | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 80 °C | |
| Temperature range (unmoved) | -50 °C bis 80 °C |
Download
Logistics
| Country of origin | IT |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
