PUR servo line ÖLFLEX SERVO FD 7OCS 5 G 2.5 mm², AWG 14, shielded, orange, 1023388
Order No.: 33P5121
EAN: 4064727491240
MPN:
1023388
ÖLFLEX SERVO FD 7OCS 4G2,5+(1xZ50)+2x(2x
Series: ÖLFLEX SERVO FD 7OCS
Unit Price (€ / mtr.)
39.7341 € *
Available: 0 mtr.
Leadtime: On Request **

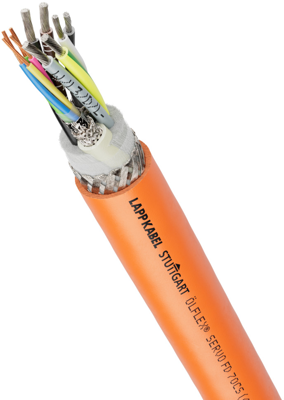

Servo cable, 1023388, LAPP
The 1023388 is a low capacitive hybrid servo cable with PUR outer sheath for highly dynamic power chain application - certified. Suitable for various OEM transmission protocols.
Features
- Suitable for outdoor use
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Interference signals
- UV-resistant
Technical specifications
| Aderisolationsmaterial | Polypropylen | |
| Anzahl der Adern | 5 | |
| Ausführung | Servoleitung | |
| Außendurchmesser | 16.7 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | orange | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | PUR | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 4 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -40 °C bis 80 °C | |
| Temperaturbereich (unbewegt) | -50 °C bis 80 °C |
Download
Logistics
| Ursprungsland | QU |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
