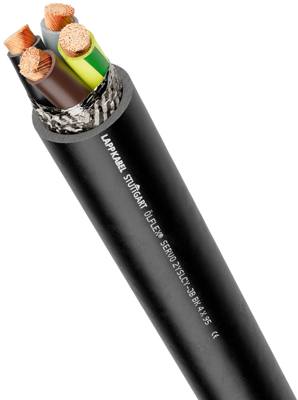

PVC motor connection cable ÖLFLEX SERVO 2YSLCY-JB 4 G 6.0 mm², AWG 10, shielded, black, 1136453
Order No.: 33P5112
EAN: 4044776738671
MPN:
1136453
ÖLFLEX SERVO 2YSLCY-JB BK 4G6
Series: ÖLFLEX SERVO 2YSLCY-JB
Unit Price (€ / mtr.)
11.7215 € *
Available: 0 mtr.
Leadtime: On Request **
Motor cable, 1136453, LAPP
The 1136453 is a double shielded low capac-itance cable of flexible design, with PVC sheath and PE core insulation. It is suitable for frequency converters operated by three-phase current motors. This product is largely resistant to acids, alkalis and certain oils at room temperature. Is suitable for occasional, non-automated movements. The maximum tensile load is 15 N/mm2 of conductor crosssection during installation and operation. Compulsory guidance is not permitted.
Features
- Flame-retardant
- Interference signals
- EMC-compliant operation of power drive systems
- High power transmission for large drives
- Low capacitance design enables longer cable connection between frequency converter and motor
- Symmetrical 3+3 Version supports the reduction of damaging bearing currents
Applications
- Connecting cable between frequency converter and motor
- Paper industry
- Chemical industry
Technical specifications
| Aderisolationsmaterial | PE | |
| Anzahl der Adern | 4 | |
| Ausführung | Motoranschlussleitung | |
| Außendurchmesser | 17 mm | |
| AWG-Leiterquerschnitt | AWG 10 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 6,0 mm² | |
| Material | PVC | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 4 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -5 °C bis 70 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 70 °C |
Download
Logistics
| Ursprungsland | IT |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
