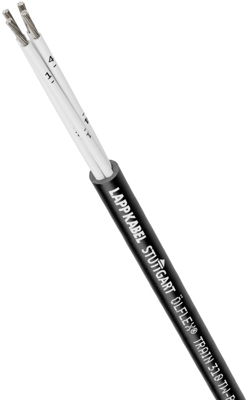

Polymer compound train cable ÖLFLEX TRAIN 310 TW-P 300V 37 x 0.5 mm², unshielded, black, 15310004
Order No.: 33P1995
EAN: 4044777256983
MPN:
15310004
ÖLFLEX TRAIN 310 TW-P 300V 37X0,5
Series: ÖLFLEX TRAIN 310 TW-P 300V
Unit Price (€ / mtr.)
17.4216 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Railway line, 15310004, LAPP
Highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. It is designed for fixed and protected installation, further for applications, where limited movement may occur.
Features
- Halogen-free
- No corrosive gases
- Low smoke density
- Flame-retardant
- Good chemical resistance
Applications
- For use in railway vehicles, for fixed and protected installation and applications where limited movement may occur
- Suitable for control and monitoring circuits as well as locking circuits and internal wiring of equipment in trains and locomotives
- Also applicable within oily environments and areas with increased ambient temperature
Technical specifications
| Core insulation material | electron beam crosslinked polymer compound | |
| Core colour sequence | white | |
| Number of cores | 37 | |
| Version | train cable | |
| Outer diameter | 11.4 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Conductor category | CL.5 = fine stranded | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 0.5 mm² | |
| Material | polymer compound | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 3.4 kV | |
| Shielding | unshielded | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C to 105 °C | |
| Temperature range (unmoved) | -40 °C to 125 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
