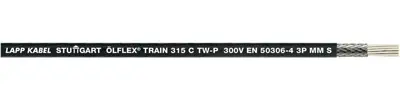

Polymer compound train cable ÖLFLEX TRAIN 315 C TW-P 300V 4 x 1.0 mm², unshielded, black, 15315012
Order No.: 33P2022
EAN: 4044777257942
MPN:
15315012
ÖLFLEX TRAIN 315 C TW-P 300V 4X1
Series: ÖLFLEX TRAIN 315 C TW-P 300V
Unit Price (€ / mtr.)
6.1404 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Railway line, 15315012, LAPP
Highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. It is designed for fixed and protected installation, further for applications, where limited movement may occur.
Features
- Halogen-free
- No corrosive gases
- Low smoke density
- Flame-retardant
- Good chemical resistance
Applications
- In EMC-sensitive environments
- For use in railway vehicles, for fixed and protected installation and applications where limited movement may occur
- Suitable for control and monitoring circuits as well as locking circuits and internal wiring of equipment in trains and locomotives
- Also applicable within oily environments and areas with increased ambient temperature
Technical specifications
| Core insulation material | elektronenstrahlvernetztes Polymer-Compound | |
| Core colour sequence | weiß | |
| Number of cores | 4 | |
| Version | Bahnleitung | |
| Outer diameter | 6 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 1,0 mm² | |
| Material | Polymer-Compound | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 3.4 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C bis 105 °C | |
| Temperature range (unmoved) | -40 °C bis 125 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
