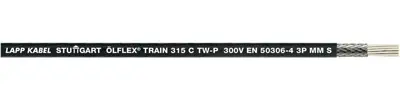

Polymer compound train cable ÖLFLEX TRAIN 315 C TW-P 300V 8 x 1.5 mm², unshielded, black, 15315019
Order No.: 33P2032
EAN: 4044777258154
MPN:
15315019
ÖLFLEX TRAIN 315 C TW-P 300V 8X1,5
Series: ÖLFLEX TRAIN 315 C TW-P 300V
Unit Price (€ / mtr.)
12.7092 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Railway line, 15315019, LAPP
Highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. It is designed for fixed and protected installation, further for applications, where limited movement may occur.
Features
- Halogen-free
- No corrosive gases
- Low smoke density
- Flame-retardant
- Good chemical resistance
Applications
- In EMC-sensitive environments
- For use in railway vehicles, for fixed and protected installation and applications where limited movement may occur
- Suitable for control and monitoring circuits as well as locking circuits and internal wiring of equipment in trains and locomotives
- Also applicable within oily environments and areas with increased ambient temperature
Technical specifications
| Aderisolationsmaterial | elektronenstrahlvernetztes Polymer-Compound | |
| Adernfarbe | weiß | |
| Anzahl der Adern | 8 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 9.5 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | Polymer-Compound | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 3.4 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 125 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
