15317003 | LAPP

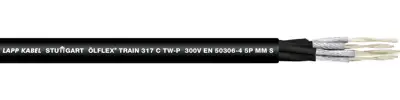

Polymer compound train cable ÖLFLEX TRAIN 317 C TW-P 300V 7 x 0.5 mm², shielded, black, 15317003
Order No.: 33P2314
EAN: 4044777258369
MPN:
15317003
ÖLFLEX TRAIN 317 C TW-P 300V 7X(2X0,5)
Series: ÖLFLEX TRAIN 317 C TW-P 300V
Unit Price (€ / mtr.)
21.2177 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Screened multi-core cable, 15317003, LAPP
The 15317003 is a screened multi-core, halogen-free, highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. This product is designed for fixed and protected installation, further for applications, where limited movement may occur. It is particularly used in areas, where human life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- Space requirement
- Interference signals
Technical specifications
| Aderisolationsmaterial | elektronenstrahlvernetztes Polymer-Compound | |
| Adernfarbe | weiß | |
| Anzahl der Adern | 7 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 13.6 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | Polymer-Compound | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 3.5 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -45 °C bis 125 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
