15317010 | LAPP

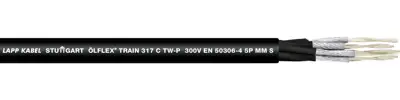

Polymer compound train cable ÖLFLEX TRAIN 317 C TW-P 300V 4 x 1.0 mm², shielded, black, 15317010
Order No.: 33P2312
EAN: 4044777258574
MPN:
15317010
ÖLFLEX TRAIN 317 C TW-P 300V 4X(2X1)
Series: ÖLFLEX TRAIN 317 C TW-P 300V
Unit Price (€ / mtr.)
18.0047 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Screened multi-core cable, 15317010, LAPP
The 15317010 is a screened multi-core, halogen-free, highly flame retardant cable with reduced insulation wall thickness for use in railway vehicles. This product is designed for fixed and protected installation, further for applications, where limited movement may occur. It is particularly used in areas, where human life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- Space requirement
- Interference signals
Technical specifications
| Core insulation material | electron beam crosslinked polymer compound | |
| Core colour sequence | white | |
| Number of cores | 4 | |
| Version | train cable | |
| Outer diameter | 12.7 mm | |
| Colour | black | |
| Halogen free | Yes | |
| Cable material | copper, tin-plated | |
| Cable cross-section | 1.0 mm² | |
| Material | polymer compound | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 3.5 kV | |
| Shielding | shielded | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C to 105 °C | |
| Temperature range (unmoved) | -45 °C to 125 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
