15325008 | LAPP

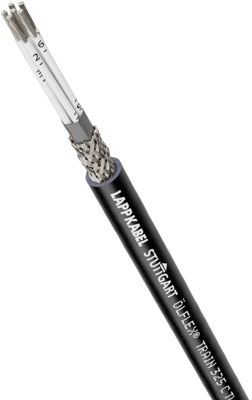

Polymer compound train cable ÖLFLEX TRAIN 325 C TW-E 300V 6 x 0.75 mm², shielded, black, 15325008
Order No.: 33P2072
EAN: 4044777259717
MPN:
15325008
ÖLFLEX TRAIN 325 C TW-E 300V 6X0,75
Series: ÖLFLEX TRAIN 325 C TW-E 300V
Unit Price (€ / mtr.)
9.8056 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Railway line, 15325008, LAPP
Highly flame retardant cable with reduced insulation for use in railway vehicles. It is designed for fixed installation and for applications, where limited movement may occur. The screen is a protection against electrical interference.
Features
- Halogen-free
- No corrosive gases
- Low smoke density
- Flame-retardant
- Good chemical resistance
Applications
- In EMC-sensitive environments
- For use in railway vehicles, for fixed and protected installation and applications where limited movement may occur
- Suitable for control and monitoring circuits as well as locking circuits and internal wiring of equipment in trains and locomotives
- Also applicable within oily environments and areas with increased ambient temperature
Technical specifications
| Aderisolationsmaterial | elektronenstrahlvernetztes Polymer-Compound | |
| Adernfarbe | weiß | |
| Anzahl der Adern | 6 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 8 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,75 mm² | |
| Material | Polymer-Compound | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 3.5 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 105 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 125 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
