15340000 | LAPP

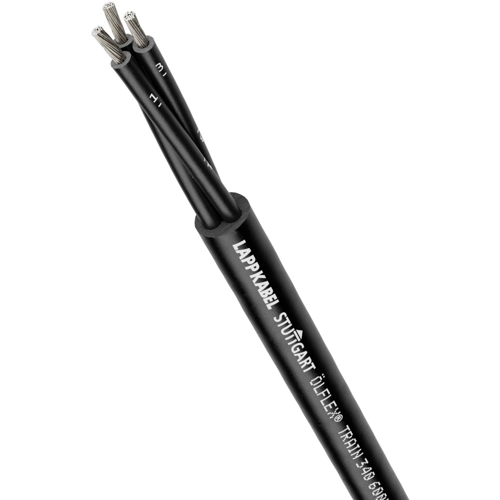

Polymer compound train cable ÖLFLEX TRAIN 340 600V 2 x 1.5 mm², unshielded, black, 15340000
Order No.: 33P2432
EAN: 4044777253951
MPN:
15340000
ÖLFLEX TRAIN 340 600V 2X1,5
Series: ÖLFLEX TRAIN 340 600V
Unit Price (€ / mtr.)
3.5105 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Multi-core cable, 15340000, LAPP
The 15340000 is a multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Aderisolationsmaterial | elektronenstrahlvernetztes Polymer-Compound | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 2 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 7.4 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | Polymer-Compound | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 3.5 kV | |
| Schirmung | ungeschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -45 °C bis 120 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
