15345040 | LAPP

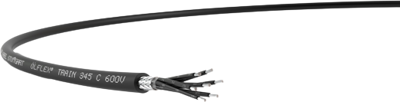

Polymer train cable ÖLFLEX TRAIN 345 C 600V 2 x 0.5 mm², shielded, black, 15345040
Order No.: 33P2225
EAN: 4044777919239
MPN:
15345040
ÖLFLEX TRAIN 345 C 600V 2x0,5
Series: ÖLFLEX TRAIN 345 C 600V
Unit Price (€ / mtr.)
3.5700 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Control line, 15345040, LAPP
The 15345040 is a highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
Applications
- Suitable for connecting lamps
- Heating equipment
- Applicable within oily environments and areas with increased ambient temperature
Technical specifications
| Aderisolationsmaterial | Polymer | |
| Adernfarbe | VDE 0293-1 | |
| Anzahl der Adern | 2 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 6.5 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 0,5 mm² | |
| Material | Polymer | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Prüfspannung | 3.5 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -45 °C bis 120 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
