15350007 | LAPP

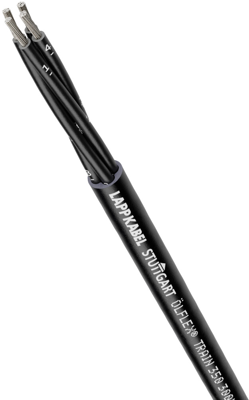

Polymer compound train cable ÖLFLEX TRAIN 350 300V 32 x 1.0 mm², unshielded, black, 15350007
Order No.: 33P2513
EAN: 4044777255450
MPN:
15350007
ÖLFLEX TRAIN 350 300V 32X1
Series: ÖLFLEX TRAIN 350 300V
Unit Price (€ / mtr.)
24.4664 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Multi-core cable, 15350007, LAPP
The 15350007 is a multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Temperature-resistant
Technical specifications
| Core insulation material | elektronenstrahlvernetztes Polymer-Compound | |
| Core colour sequence | schwarz | |
| Number of cores | 32 | |
| Version | Bahnleitung | |
| Outer diameter | 15.9 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 1,0 mm² | |
| Material | Polymer-Compound | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C bis 90 °C | |
| Temperature range (unmoved) | -45 °C bis 120 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
