15355016 | LAPP
Polymer compound train cable ÖLFLEX TRAIN 355 C 300V 32 x 1.5 mm², shielded, black, 15355016
Order No.: 33P2538
EAN: 4044777256389
MPN:
15355016
ÖLFLEX TRAIN 355 C 300V 32X1,5
Series: ÖLFLEX TRAIN 355 C 300V
Unit Price (€ / mtr.)
42.0665 € *
Available: 0 mtr.
Leadtime: 6 Weeks **

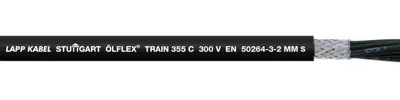

Screened multi-core cable, 15355016, LAPP
The 15355016 is a screened multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Interference signals
Technical specifications
| Core insulation material | elektronenstrahlvernetztes Polymer-Compound | |
| Core colour sequence | schwarz | |
| Number of cores | 32 | |
| Version | Bahnleitung | |
| Outer diameter | 20.8 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 1,5 mm² | |
| Material | Polymer-Compound | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | geschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C bis 90 °C | |
| Temperature range (unmoved) | -45 °C bis 120 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
