15355022 | LAPP

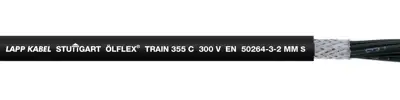

Polymer compound train cable ÖLFLEX TRAIN 355 C 300V 19 x 2.5 mm², shielded, black, 15355022
Order No.: 33P2532
EAN: 4044777256532
MPN:
15355022
ÖLFLEX TRAIN 355 C 300V 19X2,5
Series: ÖLFLEX TRAIN 355 C 300V
Unit Price (€ / mtr.)
35.2597 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Screened multi-core cable, 15355022, LAPP
The 15355022 is a screened multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Interference signals
Technical specifications
| Aderisolationsmaterial | elektronenstrahlvernetztes Polymer-Compound | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 19 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 18.6 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Polymer-Compound | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -45 °C bis 120 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
