15355023 | LAPP

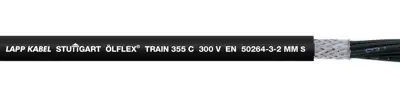

Polymer compound train cable ÖLFLEX TRAIN 355 C 300V 24 x 2.5 mm², shielded, black, 15355023
Order No.: 33P2535
EAN: 4044777256563
MPN:
15355023
ÖLFLEX TRAIN 355 C 300V 24X2,5
Series: ÖLFLEX TRAIN 355 C 300V
Unit Price (€ / mtr.)
44.3632 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Screened multi-core cable, 15355023, LAPP
The 15355023 is a screened multi-core halogen-free, highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards. The screen is a protection against electrical interference.
Features
- Highly oil- and fuel-resistant
- Good chemical resistance
- Cold resistant
- UV-resistant
- Interference signals
Technical specifications
| Aderisolationsmaterial | elektronenstrahlvernetztes Polymer-Compound | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 24 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 21.3 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | Polymer-Compound | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -45 °C bis 120 °C |
Download
Logistics
| Ursprungsland | KR |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
