15381002 | LAPP

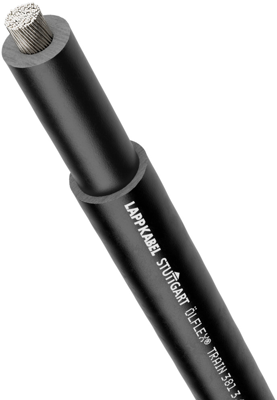

Polymer train cable ÖLFLEX TRAIN 381 3,6kV 1 x 6.0 mm², unshielded, black, 15381002
Order No.: 33P3460
EAN: 4044777516667
MPN:
15381002
ÖLFLEX TRAIN 381 3,6kV 1X6
Series: ÖLFLEX TRAIN 381 3,6kV
Unit Price (€ / mtr.)
6.3903 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Train cable, 15381002, LAPP
The 15381002 is single-core highly flame retardant cable for use in railway vehicles and buses. This product is designed for fixed installation and for applications, where limited movement may occur. It is particularly used in areas, where human and animal life as well as valuable property are exposed to high risk of fire hazards.
Features
- Good chemical resistance
- Flame-retardant
- Halogen-free
- Cold-resistant
- Mechanical resistance
- Oil-resistant
- Temperature-resistant
- UV-resistant
Applications
- Connecting lamps
- Heating equipment
- Switchgear
- Terminal boxes
- Power supply
Technical specifications
| Core insulation material | Polymer | |
| Core colour sequence | schwarz | |
| Number of cores | 1 | |
| Version | Bahnleitung | |
| Outer diameter | 10.2 mm | |
| Colour | schwarz | |
| Halogen free | Yes | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 6,0 mm² | |
| Material | Polymer | |
| Rated voltage | 6 kV | |
| Rated voltage U0 | 3600 V | |
| Test voltage | 11 kV | |
| Shielding | ungeschirmt | |
| Protective conductor available | No | |
| Temperature range (active) | -35 °C bis 90 °C | |
| Temperature range (unmoved) | -45 °C bis 120 °C |
Download
Logistics
| Country of origin | KR |
| Customs tariff number | 85446010 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
