15382173 | LAPP

Polymer compound train cable UNIRAIL S 50264-3-2 600V MM FR 2 x 2.5 mm², unshielded, red, 15382173

Order No.: 33P8062
EAN: 4064727525143
MPN:
15382173
UNIRAIL S 50264-3-2 600V MM FR 2X2,5
LAPP

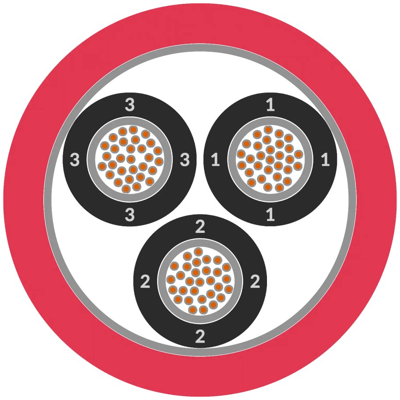

15382173 LAPP Other Cables and Wires Image 1

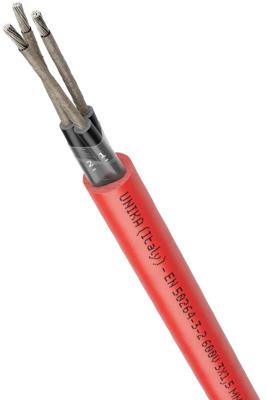

15382173 LAPP Other Cables and Wires Image 2
Image may differ
Unit Price (€ / mtr.)
5.2241 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Total Price:
5.22 € *
*incl. VAT plus shipping costs
**Subject to prior sale
500 mtr.
5.2241 €

Railway cable, 15382173, LAPP

The 15382173 railway cable is suitable for wiring safety-related components in railway vehicles. The cross-linked insulation material promotes longevity at high temperatures or with high current loads, and provides high dielectric strength. Halogen free and highly flame retardant materials reduce the risk of flame propagation, high smoke density and toxic flue gases in the event of a fire.

Features

  • Space-saving due to reduced wall thicknesses
  • Compliant with standards for use in rail vehicles: fire safety and cable design requirements according to DIN EN 50264-3-2, type MM; fire behaviour in accordance with DIN EN 45545-2, hazard level HL3
  • Insulation integrity for up to 120 minutes under the effect of fire (classification PH120 according to DIN EN 50200)
  • The cross-linked polymer compound is highly resistant to oils, fuels, alkalis and acids

Applications

  • For the protection of people and property
  • Emergency power circuits for alarm, lighting and communication purposes, which must maintain their function for a certain period of time in the event of a fire
  • Railway vehicles, for fixed installation and applications where limited movement is to be expected
  • Can be used in dry, damp and, especially, harsh and oily environments
Technical specifications
Core insulation material polymer compound
Core colour sequence black
Number of cores 2
Version train cable
Outer diameter 9.4 mm
Colour red
Halogen free Yes
Conductor category CL.5 = fine stranded
Cable material copper, tin-plated
Cable cross-section 2.5 mm²
Material polymer compound
Rated voltage 1 kV
Rated voltage U0 600 V
Test voltage 3.5 kV
Shielding unshielded
Protective conductor available No
Temperature range (unmoved) -40 °C to 90 °C
Logistics
Original Packaging Reel with 500 meters
Compliance
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free Yes
