1600010 | LAPP

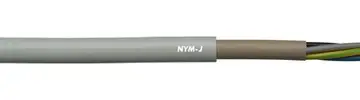

PVC installation line NYM-J 1 G 6.0 mm², unshielded, gray, 1600010
Unit Price (€ / mtr.)
1.6303 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
1.63 € *
Price list
Quantity
Price per unit*
1 mtr.
1.6303 €
10 mtr.
1.4161 €
100 mtr.
1.2733 €
500 mtr.
1.1781 €
1000 mtr.
1.0591 €
*incl. VAT plus shipping costs
**Subject to prior sale
Technical specifications
| Core insulation material | PVC | |
| Core colour sequence | green-yellow | |
| Number of cores | 1 | |
| Version | sheathed line | |
| Outer diameter | 7.2 mm | |
| Colour | gray | |
| Halogen free | No | |
| Cable material | copper, bright | |
| Cable cross-section | 6.0 mm² | |
| Material | PVC | |
| Rated voltage | 500 V | |
| Rated voltage U0 | 300 V | |
| Test voltage | 2 kV | |
| Shielding | unshielded | |
| Protective conductor available | Yes | |
| Temperature range (active) | 5 °C to 60 °C | |
| Temperature range (unmoved) | -40 °C to 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444991 |
| Original Packaging | Ring with 100 meters |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
