2027020 | LAPP

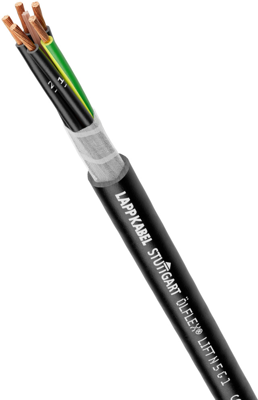

PVC elevator cable ÖLFLEX LIFT N 7 G 1.0 mm², AWG 18, black, 2027020
Unit Price (€ / mtr.)
4.7124 € *
Available: 0 mtr.
Leadtime: On Request **
Lift cable, 2027020, LAPP
The 2027020 is a high flexible PVC control cable with a suspension strand and cold-flexible PVC jacket for use in elevators and conveyor systems. For use in dry, damp or wet rooms as well as outdoors but only under consideration of the temperature range. Generally resistant against acids, caustic solution and oils at room temperature.
Features
- Suitable for outdoor use
- Cold-resistant
- Optimum strain relief
- UV-resistant
- Special cable design for a long service life
- Very flexible due to extra-fine wire conductor design
Technical specifications
| Aderisolationsmaterial | PVC | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 7 | |
| Ausführung | Aufzugsleitung | |
| Außendurchmesser | 11.3 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | PVC | |
| Nennspannung | 500 V | |
| Nennspannung U0 | 300 V | |
| Prüfspannung | 4 kV | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -15 °C bis 70 °C |
Download
Logistics
| Ursprungsland | QU |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
