3823347 | LAPP

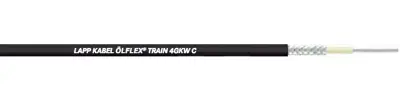

Polymer train cable ÖLFLEX TRAIN 4GKW C 1 x 120 mm², shielded, black, 3823347
Order No.: 33P5401
EAN: 4044778359317
MPN:
3823347
ÖLFLEX TRAIN 4GKW C 1X120 BK
Series: ÖLFLEX TRAIN 4GKW C
Unit Price (€ / mtr.)
68.306 € *
Available: 0 mtr.
Leadtime: On Request **
Train cable, 3823347, LAPP
Power cable for increased requirements in railroad applications.
Features
- Flame-retardant
- Halogen-free
- Low smoke density
Applications
- For fixed and protected installations inside or outside of railed vehicles and busses
- For connection of stationary and moving parts
- Suitable for cabling of switchboards, converters, panel units and rheostatic braking blocks
Technical specifications
| Aderisolationsmaterial | Polymer | |
| Anzahl der Adern | 1 | |
| Ausführung | Bahnleitung | |
| Außendurchmesser | 23.1 mm | |
| Farbe | schwarz | |
| Halogenfrei | Yes | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 120 mm² | |
| Material | Polymer | |
| Nennspannung | 3 kV | |
| Nennspannung U0 | 1800 V | |
| Prüfspannung | 6.5 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | No | |
| Temperaturbereich (bewegt) | -35 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 125 °C |
Download
Logistics
| Zolltarifnummer | 85446010 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
