700700 | LAPP

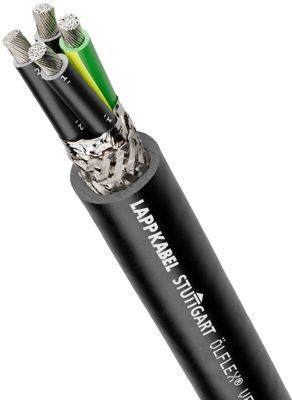

TPE motor connection cable ÖLFLEX VFD 2XL 4 G 1.5 mm², AWG 16, shielded, black, 700700
Unit Price (€ / mtr.)
10.9361 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Flexible VFD cable, 700700, LAPP
The 700700 is a robust oil-resistant shielded motor cable for VFD drives. Due to the enhanced electrical properties of its XLPE insulation, this product provides problem-free performance where precision control is critical.
Features
- Flame-retardant
- Mechanical resistance
- Oil-resistant
- Interference signals
Applications
- VFD drive and motor connections
- EMC-compliant
Technical specifications
| Aderisolationsmaterial | XLPE | |
| Adernfarbe | schwarz | |
| Anzahl der Adern | 4 | |
| Ausführung | Motoranschlussleitung | |
| Außendurchmesser | 12.9 mm | |
| AWG-Leiterquerschnitt | AWG 16 | |
| Farbe | schwarz | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, verzinnt | |
| Leiterquerschnitt | 1,5 mm² | |
| Material | TPE | |
| Nennspannung | 1000 V | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 600 V | |
| Prüfspannung | 6 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
