700701 | LAPP

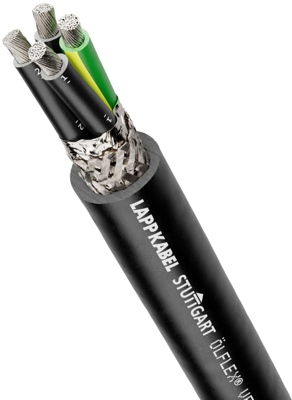

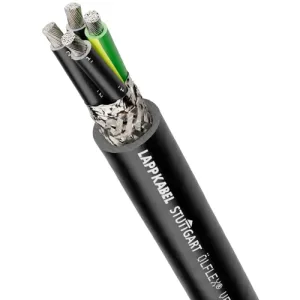

TPE motor connection cable ÖLFLEX VFD 2XL 4 G 2.5 mm², AWG 14, shielded, black, 700701
Unit Price (€ / mtr.)
16.9932 € *
Available: 0 mtr.
Leadtime: 6 Weeks **
Flexible VFD cable, 700701, LAPP
The 700701 is a robust oil-resistant shielded motor cable for VFD drives. Due to the enhanced electrical properties of its XLPE insulation, this product provides problem-free performance where precision control is critical.
Features
- Flame-retardant
- Mechanical resistance
- Oil-resistant
- Interference signals
Applications
- VFD drive and motor connections
- EMC-compliant
Technical specifications
| Core insulation material | XLPE | |
| Core colour sequence | schwarz | |
| Number of cores | 4 | |
| Version | Motoranschlussleitung | |
| Outer diameter | 14.8 mm | |
| AWG cross-section | AWG 14 | |
| Colour | schwarz | |
| Halogen free | No | |
| Conductor category | Kl.5 = feindrähtig | |
| Cable material | Kupfer, verzinnt | |
| Cable cross-section | 2,5 mm² | |
| Material | TPE | |
| Rated voltage | 1000 V | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 600 V | |
| Test voltage | 6 kV | |
| Shielding | geschirmt | |
| Protective conductor available | Yes | |
| Temperature range (active) | -25 °C bis 90 °C | |
| Temperature range (unmoved) | -40 °C bis 90 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
