700735 | LAPP
TPE servo line ÖLFLEX SERVO 7TCE 4 G 2.5 mm², AWG 14, shielded, orange, 700735
Order No.: 33P5347
EAN: 4044777814831
MPN:
700735
ÖLFLEX SERVO 7TCE 4G14AWG+(2x16AWG)
Series: ÖLFLEX SERVO 7TCE
Unit Price (€ / mtr.)
23.0265 € *
Available: 0 mtr.
Leadtime: On Request **

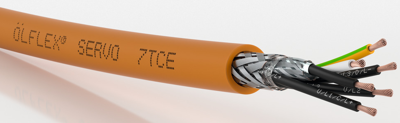

Servo line, 700735, LAPP
This 700735 is a highly flexible and oil resistant servo cable suitable for mounting either in the equipment or in cable trays, eliminating the need for two different types of cable in a single run. It offers one cable solution for installing power servo motor systems.
Features
- Flame-retardant
- Oil-resistant
- Sunlight Resistant
Applications
- Connecting cable between servo controller and motor
- For fixed installation or applications with occasional movements
- Plant engineering
- Industrial machinery and machine tools
Technical specifications
| Aderisolationsmaterial | XLPE | |
| Anzahl der Adern | 4 | |
| Ausführung | Servoleitung | |
| Außendurchmesser | 13.3 mm | |
| AWG-Leiterquerschnitt | AWG 14 | |
| Farbe | orange | |
| Halogenfrei | No | |
| Leiterklasse | Kl.5 = feindrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 2,5 mm² | |
| Material | TPE | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1000 V | |
| Prüfspannung | 2 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -25 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -40 °C bis 90 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
