700751 | LAPP
TPE servo line ÖLFLEX SERVO FD 7TCE 4 G 2.5 mm², AWG 14, shielded, orange, 700751
Order No.: 33P5131
EAN: 4056156707085
MPN:
700751
ÖLFLEX SERVO FD 7TCE 4G14AWG
Series: ÖLFLEX SERVO FD 7TCE
Unit Price (€ / mtr.)
15.1487 € *
Available: 0 mtr.
Leadtime: On Request **

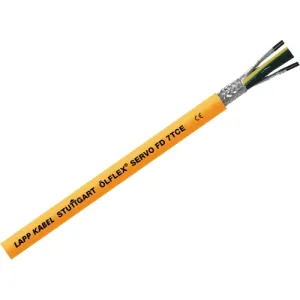

Servo cable, 700751, LAPP
The 700751is a continuous flex and oil resistant servo cable suitable for mounting either in equipment or in cable tray, eliminating the need for two different types of cable in a single run. A longer cable connection is possible between the drive and the motor due to its low capacitance design. This one cable solution is ideal for installing power to servo motor systems.
Features
- Flame-retardant
- Mechanical resistance
- Oil-resistant
- Power chain
- Interference signals
- UV-resistant
Technical specifications
| Core insulation material | EPR | |
| Number of cores | 4 | |
| Version | servo line | |
| Outer diameter | 11.4 mm | |
| AWG cross-section | AWG 14 | |
| Colour | orange | |
| Halogen free | No | |
| Conductor category | CL.6 = finest stranded | |
| Cable material | copper, bright | |
| Cable cross-section | 2.5 mm² | |
| Material | TPE | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 1000 V | |
| Test voltage | 4 kV | |
| Shielding | shielded | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C to 90 °C | |
| Temperature range (unmoved) | -50 °C to 90 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
