700758 | LAPP

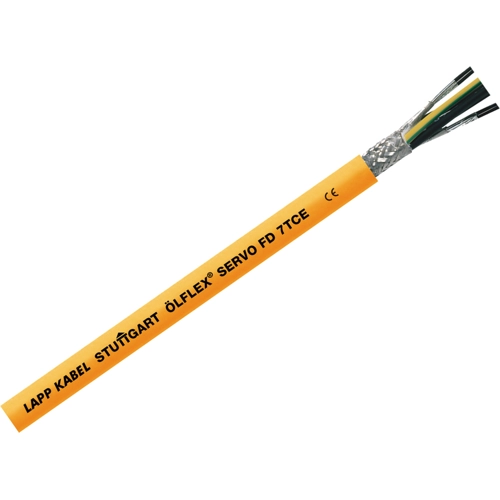

TPE servo line ÖLFLEX SERVO FD 7TCE 4 G 1.0 mm², AWG 18, shielded, orange, 700758
Order No.: 33P5137
EAN: 4056156707221
MPN:
700758
ÖLFLEX SERVO FD 7TCE 4G18AWG+2x(2x18AWG)
Series: ÖLFLEX SERVO FD 7TCE
Unit Price (€ / mtr.)
24.1808 € *
Available: 0 mtr.
Leadtime: On Request **
Servo cable, 700758, LAPP
The 700758is a continuous flex and oil resistant servo cable suitable for mounting either in equipment or in cable tray, eliminating the need for two different types of cable in a single run. A longer cable connection is possible between the drive and the motor due to its low capacitance design. This one cable solution is ideal for installing power to servo motor systems.
Features
- Flame-retardant
- Mechanical resistance
- Oil-resistant
- Power chain
- Interference signals
- UV-resistant
Technical specifications
| Aderisolationsmaterial | EPR | |
| Anzahl der Adern | 4 | |
| Ausführung | Servoleitung | |
| Außendurchmesser | 13.3 mm | |
| AWG-Leiterquerschnitt | AWG 18 | |
| Farbe | orange | |
| Halogenfrei | No | |
| Leiterklasse | Kl.6 = feinstdrähtig | |
| Leitermaterial | Kupfer, blank | |
| Leiterquerschnitt | 1,0 mm² | |
| Material | TPE | |
| Nennspannung | 1 kV | |
| Nennspannung U0 | 600 V | |
| Nennspannung UL/CSA | 1000 V | |
| Prüfspannung | 4 kV | |
| Schirmung | geschirmt | |
| Schutzleiter vorhanden | Yes | |
| Temperaturbereich (bewegt) | -40 °C bis 90 °C | |
| Temperaturbereich (unbewegt) | -50 °C bis 90 °C |
Download
Logistics
| Ursprungsland | US |
| Zolltarifnummer | 85444995 |
Compliance
| RoHS konform | Yes |
| Stand der RoHS-Richtlinie | 3/31/15 |
| SVHC frei | Yes |
