700762 | LAPP
TPE servo line ÖLFLEX SERVO FD 7TCE 4 G 6.0 mm², AWG 10, shielded, orange, 700762
Order No.: 33P5127
EAN: 4056156707306
MPN:
700762
ÖLFLEX SERVO FD 7TCE 4G10AWG+(2x18AWG)+(
Series: ÖLFLEX SERVO FD 7TCE
Unit Price (€ / mtr.)
40.6861 € *
Available: 0 mtr.
Leadtime: On Request **
Total Price:
12,409.26 € *
*incl. VAT plus shipping costs
**Subject to prior sale
305 mtr.
40.6861 €

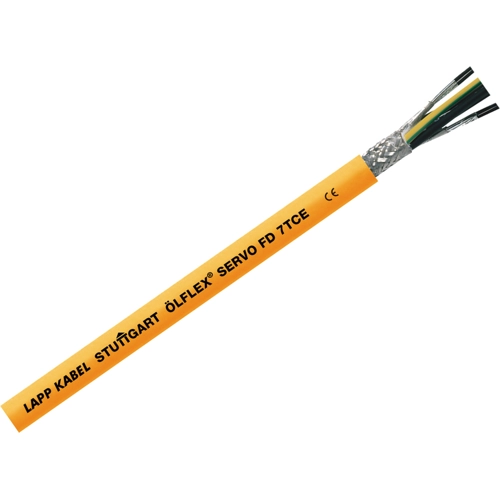

Servo cable, 700762, LAPP
The 700762is a continuous flex and oil resistant servo cable suitable for mounting either in equipment or in cable tray, eliminating the need for two different types of cable in a single run. A longer cable connection is possible between the drive and the motor due to its low capacitance design. This one cable solution is ideal for installing power to servo motor systems.
Features
- Flame-retardant
- Mechanical resistance
- Oil-resistant
- Power chain
- Interference signals
- UV-resistant
Technical specifications
| Core insulation material | EPR | |
| Number of cores | 4 | |
| Version | Servoleitung | |
| Outer diameter | 18.8 mm | |
| AWG cross-section | AWG 10 | |
| Colour | orange | |
| Halogen free | No | |
| Conductor category | Kl.6 = feinstdrähtig | |
| Cable material | Kupfer, blank | |
| Cable cross-section | 6,0 mm² | |
| Material | TPE | |
| Rated voltage | 1 kV | |
| Rated voltage U0 | 600 V | |
| Rated voltage UL/CSA | 1000 V | |
| Test voltage | 4 kV | |
| Shielding | geschirmt | |
| Protective conductor available | Yes | |
| Temperature range (active) | -40 °C bis 90 °C | |
| Temperature range (unmoved) | -50 °C bis 90 °C |
Download
Logistics
| Country of origin | US |
| Customs tariff number | 85444995 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
